Merilyzer CelQuant Edge

Name: Merilyzer CelQuant Edge
Brand: RAJ BIOSIS PRIVATE LIMITED
Price: 240000.0 INR
Availability: InStock

240000.0 INR/Number

Get a Price/Quote

Product Details:

Storage Capacity >50,000 results (on device)
Temperature Range 15C to 30C
Weight Approx. 15 kg
Properties Automated, User-Friendly Interface, Fast Analysis
Application Complete Blood Count, Hematology Testing
Humidity Range 20-80% RH
Material ABS Plastic & Sheet Metal
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Merilyzer CelQuant Edge Price And Quantity

Minimum Order Quantity 1 Number
Price 240000.0 INR/Number

Merilyzer CelQuant Edge Product Specifications

Accuracy High precision (2% for WBC/RBC counts, typical)
Power 120W
Treatment Type Blood Sample Analysis
Suitable For Blood Sample Analysis
Display Type Touchscreen LCD
Function Automated CBC Reporting
Color Code White
Phase Single
Height 390 mm
Dimension (L*W*H) 320 mm x 420 mm x 390 mm
Material ABS Plastic & Sheet Metal
Humidity Range 20-80% RH
Display 10.4-inch Touchscreen LCD
Automation Grade Fully Automated
Shape Rectangular
Properties Automated, User-Friendly Interface, Fast Analysis
Application Complete Blood Count, Hematology Testing
Temperature Range 15C to 30C
Storage Capacity >50,000 results (on device)
Weight Approx. 15 kg
Power Source AC Mains
Frequency 50/60 Hz
Use Clinical Laboratories, Hospitals
Voltage 100-240V AC
Product Type Hematology Analyzer

Noise Level <60 dB (A)
User Accounts Multi-user Login with Rights Management
Light Source High-Intensity LED
WBC Differentiation 3-part (Granulocytes, Lymphocytes, Monocytes)
Calibration Automated/Manual
Alarm System Built-in Error and Maintenance Alerts
Data Export CSV, PDF Format via USB
Interfaces USB, LAN, RS232
Printer Type Onboard Thermal Printer
Operating Languages English, Multi-Language Support
Throughput Up to 60 samples/hour
Sample Volume 20 l (whole blood)
Power Failure Protection Auto Data Backup
Maintenance Low, Guided by Software Prompts
Connectivity LIS Compatible, Wi-Fi Ready

Product Description

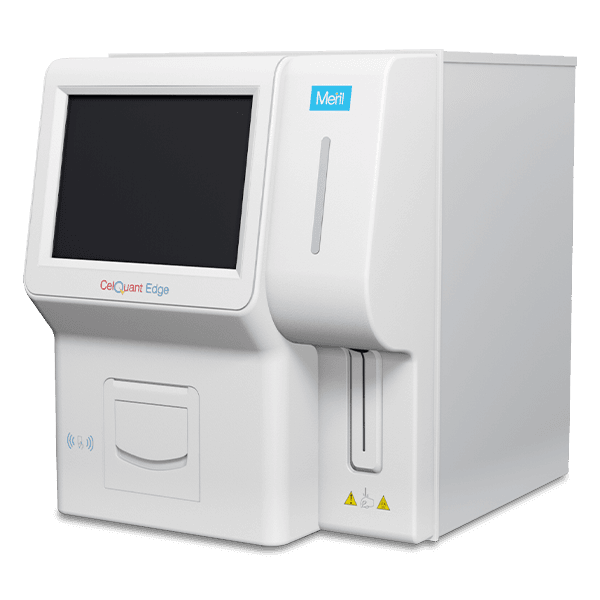

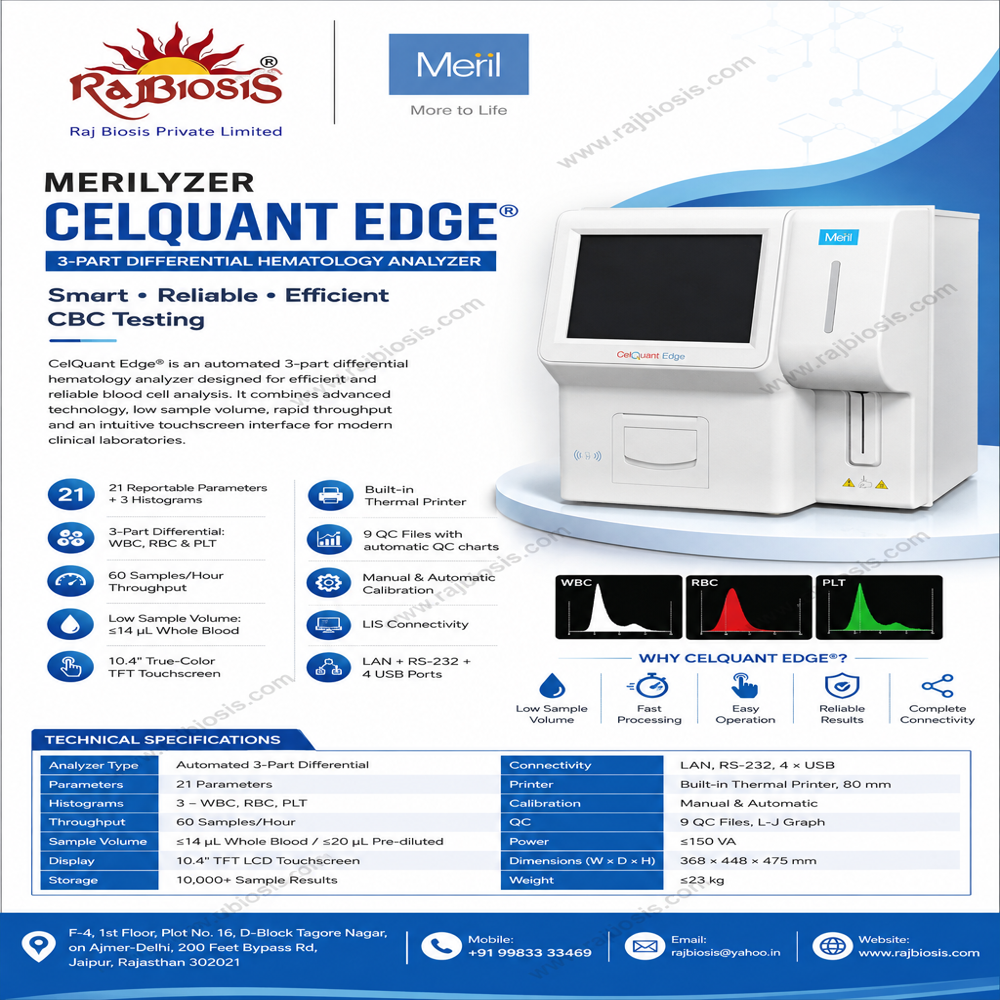

The Merilyzer CelQuant Edge is a fully automated, compact 3-part differential hematology analyzer designed by Meril Life Sciences. It is engineered for routine Complete Blood Count (CBC) testing in small to medium-sized clinical laboratories, hospitals, and diagnostic facilities.

High-Speed, Precise Blood Analysis

The Merilyzer CelQuant Edge delivers rapid and highly accurate CBC results, processing up to 60 samples per hour with exceptional 2% precision on WBC and RBC counts. Its advanced 3-part differentiation provides detailed insights into granulocytes, lymphocytes, and monocytes for efficient diagnostics in clinical settings.

Seamless Workflow & Connectivity

With versatile connectivity options, including USB, LAN, RS232, LIS compatibility, and Wi-Fi readiness, the CelQuant Edge integrates smoothly into existing laboratory systems. Data can be exported in CSV and PDF formats, supporting effective record-keeping and reporting.

User-Centric Design and Operation

Equipped with a 10.4-inch touchscreen and multi-language operating capability, the CelQuant Edge's intuitive interface allows easy navigation and rapid setup. Multi-user accounts with rights management ensure secure and authorized access, while auto/manual calibration and guided maintenance promote long-term reliability.

FAQ's of Merilyzer CelQuant Edge:

Q: How does the Merilyzer CelQuant Edge ensure accurate blood analysis?

A: The analyzer utilizes high-intensity LED optical technology and precise flow measurement, achieving a typical 2% accuracy in WBC and RBC counts. Its automated calibration functions further enhance result reliability.

Q: What is the process for conducting a complete blood count with this device?

A: A whole blood sample of 20 l is placed into the analyzer, which then automatically performs cell counting and 3-part WBC differentiation. Results, including granulocyte, lymphocyte, and monocyte data, are displayed, printed, and stored for future retrieval.

Q: When should calibration or maintenance be performed on the CelQuant Edge?

A: Calibration can be executed either automatically by the system at set intervals or manually as needed. The built-in error and maintenance alert system notifies users of required actions, ensuring consistent device performance.

Q: Where can the Merilyzer CelQuant Edge be used effectively?

A: It is ideal for clinical laboratories, hospitals, and healthcare facilities requiring fast, high-precision CBC testing. Its moderate size and power requirements make installation straightforward in most laboratory environments.

Q: What benefits does the multi-user login system offer?

A: Multi-user login with rights management allows laboratories to assign customized permissions, enhancing data security and workflow efficiency by limiting access based on user roles.

Q: How does the analyzer protect data during a power failure?

A: The CelQuant Edge features automatic data backup during power loss, safeguarding all stored results and ensuring that critical patient information is never compromised.

Q: What makes the CelQuant Edge user-friendly?

A: Its touchscreen LCD interface, multi-language support, guided maintenance prompts, and low-noise operation (<60 dB) facilitate a seamless, comfortable user experience for laboratory professionals.
