Semi Automated Clinical Chemistry Analyzer

99000 INR/Piece

Get a Price/Quote

Product Details:

Display Type Graphical LCD, Backlit
Storage Instructions Store in dry & dust-free conditions
Measurement Range 0-3.0 Absorbance Units
Instruments Type Semi Automated Analyzer
Usage Type Hospital/Clinical Laboratory Use
Accuracy 1% or better
Frequency 50/60 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Semi Automated Clinical Chemistry Analyzer Price And Quantity

Price 99000 INR/Piece
Minimum Order Quantity 1 Piece

Semi Automated Clinical Chemistry Analyzer Product Specifications

Features Large LCD Display, In-built Printer, User Friendly Interface, Memory Storage, Lamp Saving Function
Power Consumption Approx. 60 W
Frequency 50/60 Hz
Equipment Type Semi Automated Clinical Chemistry Analyzer
Technology Photometric/Colorimetric
Condition New
Dimension (L*W*H) 375 x 350 x 155 mm
Noise Level < 55 dB
Function Testing Bio-Chemical Parameters
Color White/Grey
Power Source Electric
Operating Type Semi-Automatic
Weight Approx. 6.5 kg
Display Type Graphical LCD, Backlit
Real-Time Operation Yes
Use Clinical Chemistry Testing - Quantitative Determination of Biochemical Substances in Blood/Serum/Plasma/Urin
Measurement Range 0-3.0 Absorbance Units
Voltage 220-240 V AC, 50/60 Hz
Portable Yes
Material ABS Plastic, Metal Components
Storage Instructions Store in dry & dust-free conditions
Usage Type Hospital/Clinical Laboratory Use
Accuracy 1% or better
Instruments Type Semi Automated Analyzer
Wall Mounted No

Semi Automated Clinical Chemistry Analyzer Trade Information

FOB Port JAIPUR
Payment Terms Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T)
Delivery Time 10 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard
Main Export Market(s) Central America, North America, South America, Eastern Europe, Africa, Asia, Australia, Western Europe, Middle East
Main Domestic Market All India

Product Description

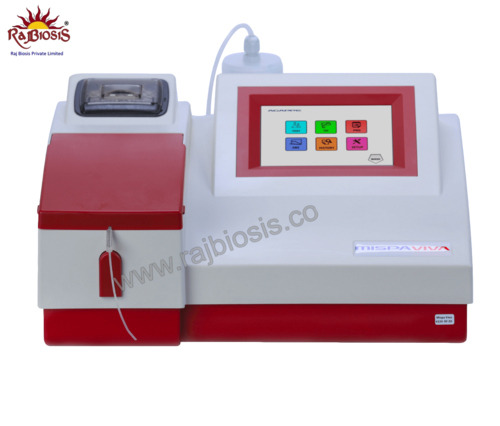

Mispa Viva is a compact, simple, and reliable semi-automated biochemistry analyzer proficient in performing tests on whole blood, serum, plasma, and urine as a sample. Mispa VIVA is an indigenously developed and designed intelligent equipment which offers the best performance to laboratories looking toward achieving the highest efficiency as an identity for their lab with optimal operative cost with negligible maintenance.

Mispa Viva comes with a 5.7" TFT LCD colorful touch display with embedded software. It is having Energy matched filter (EMF) to ensure longer filter life with low maintenance cost. Customizable filter options with six in-built filters and two optional positions. The flow cell used in Mispa Viva is made up of Quartz's hard glass to avoid staining on the flow cell after performing the test. It has an Enhanced resistive aluminum (ERA) flow cell with a copper holder of 30 microliters size.

Mispa Viva has Auto Dim Light (ADL) function to ensure an extended life for the lamp. The instrument has different analysis modes such as - 1-Point linear & non-linear, 2-Point linear & non-linear, 1-Point sample blank linear & non-linear, Absorbance, Immunoturbidimetry, Biochromatic

Enhanced Accuracy and Speed

With highly reliable photometric detection via silicon photodiode and varied calibration options-linear, multipoint, and non-linear-this analyzer ensures result accuracy up to 1%. Its halogen lamp (6V/10W) and broad wavelength range enable efficient and versatile biochemical analysis. Capable of handling up to 100 tests per hour, it streamlines workflow in busy clinical environments.

User-Friendly Design Meets Clinical Needs

Equipped with a large backlit LCD, intuitive interface, and in-built thermal printer, the analyzer simplifies daily operations. Its data storage can accommodate up to 200 test results, optimizing patient tracking. The ergonomic casing, lightweight structure, and portable design make it suitable for various clinical setups, ensuring both functionality and convenience.

FAQ's of Semi Automated Clinical Chemistry Analyzer:

Q: How does the Semi Automated Clinical Chemistry Analyzer operate?

A: The analyzer uses a photometric/colorimetric technology to quantify biochemical substances in patient samples, such as blood, serum, plasma, or urine. After the sample is placed in the cuvette or flow-through holder, the instrument measures absorbance at six selectable wavelengths using interference filters. Results are displayed on its LCD screen and can be printed instantly via the inbuilt thermal printer.

Q: What sample types and volumes are suitable for this analyzer?

A: It is designed to accept blood, serum, plasma, or urine samples, requiring a minimum sample volume of 500 l for accurate testing.

Q: When is calibration necessary and what methods are available?

A: Calibration is recommended during new lot installation, after maintenance, or if inaccurate results are suspected. The analyzer supports linear, multipoint, and non-linear calibration, giving flexibility for various testing protocols.

Q: Where can this analyzer be used and how portable is it?

A: This equipment is suitable for hospital laboratories, clinical settings, and diagnostic centers. With a compact design (375 x 350 x 155 mm) and a weight of approximately 6.5 kg, it is portable and easy to relocate within laboratory spaces.

Q: What is the process for data storage and retrieval?

A: The analyzer can store up to 200 test results in its internal memory. Users can access stored data via the graphical LCD interface or output results through the inbuilt thermal printer. Interface ports like RS232 and USB allow for external data management or transfer if needed.

Q: How does the alarm system benefit daily operations?

A: The integrated alarm system alerts users to potential errors or malfunctions, enhancing operational safety and ensuring quick troubleshooting. This minimizes downtime and helps maintain consistent result accuracy during routine use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Biochemistry Analyzer' category

Erba EM 200 - Fully Automated Biochemistry Analyzer Price : 495000 INR/Piece Minimum Order Quantity : 1 Wall Mounted : No Real-Time Operation : Yes Use : Clinical Laboratory Analysis Operating Type : Automatic Weight : 55 kg Condition : New Instruments Type : Biochemistry Analyzer Accuracy : CV 2% Usage Type : Hospital, Laboratory Storage Instructions : Store in dry, dustfree environment Portable : No Material : Other, Stainless Steel and Advanced Polymer Components Voltage : 100240 V AC, 50/60 Hz Measurement Range : 0.11000 U/L for various parameters Display Type : LCD Touchscreen Display Power Source : Electric Color : White & Blue Function : Quantitative analysis of clinical chemistry parameters Dimension (L*W*H) : 99 x 62 x 59 cm Noise Level : Low (<70 dB) Technology : Random Access, Discrete System Equipment Type : Fully Automated Biochemistry Analyzer Frequency : 50/60 Hz Features : Touchscreen, Bar Code Reader, Auto Sample Loading, QC management Power Consumption : 250 VA

Send Inquiry

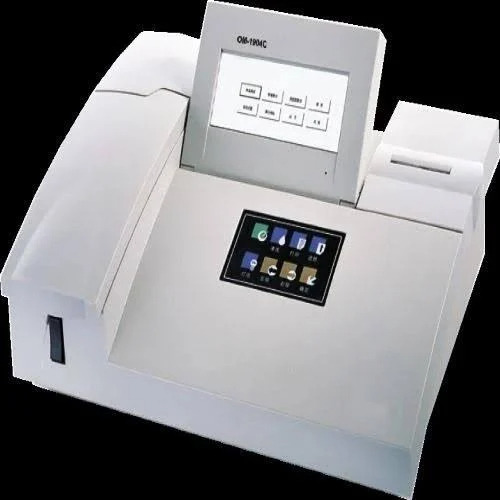

Oscar OM-3005C Auto Biochemistry Analyzer Price : 79000 INR/Piece Minimum Order Quantity : 1 Wall Mounted : No Real-Time Operation : Yes Use : Clinical Laboratory, Biochemistry Analysis Operating Type : Automatic Weight : 46 kg Condition : New Instruments Type : Fully Automated Biochemistry Analyzer Accuracy : CV 1.5% Usage Type : Clinical, Hospital, Diagnostic Center Storage Instructions : Store in dry, clean environment Portable : No Material : Other, Durable ABS Plastic / Metal Voltage : 220V AC, 50/60 Hz Measurement Range : 05000 U/L (varies based on assay) Display Type : 7inch Color Touch Screen Power Source : Electric Color : White with blue accents Function : Quantitative Analysis of clinical chemistry parameters Dimension (L*W*H) : 710 x 580 x 480 mm Noise Level : <60 dB Technology : Automated, Photometric Analysis Equipment Type : Auto Biochemistry Analyzer Frequency : 50/60 Hz Features : Random Access, STAT Sample Priority, 7inch Touch Screen, Userfriendly Interface, Builtin Printer, Sample Barcode Scanner Power Consumption : 400 W

Send Inquiry

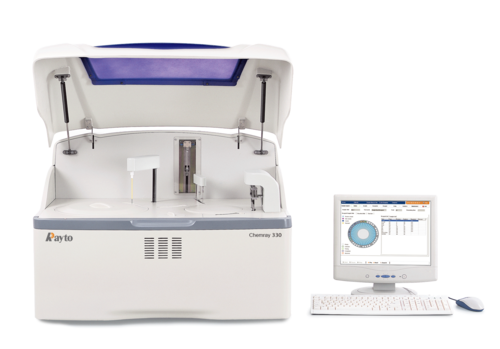

Rayto Chemray 330 Fully Automatic Biochemistry Analyzer Price : 690000.00 INR/Piece Minimum Order Quantity : 1 Wall Mounted : No Real-Time Operation : Yes Use : Clinical Chemistry and Biochemistry Testing Operating Type : Other, Automated Weight : 65 kg Condition : New Instruments Type : Clinical Chemistry Analyzer Accuracy : CV 1% for repeatability Usage Type : Laboratory/Diagnostic Use Storage Instructions : Standard Laboratory Environment Portable : No Material : Other, Metal and Plastic Housing Voltage : AC 100240V, 50/60Hz Measurement Range : 020.00 mmol/L (Depends on parameter) Display Type : Large LCD Touchscreen Power Source : Electric Color : White and Blue Function : Quantitative analysis of clinical biochemical parameters Dimension (L*W*H) : 860 mm 620 mm 540 mm Noise Level : 60 dB Technology : Discrete, Random Access, Fully Automated Equipment Type : Fully Automatic Biochemistry Analyzer Frequency : 50/60 Hz Features : Throughput up to 300 Tests/Hour, ISE optional, Large Touchscreen Display Power Consumption : 350 VA
