Ultra H - 300 3 Part Hematology Analyzer

Name: Ultra H - 300 3 Part Hematology Analyzer
Brand: RAJ BIOSIS PRIVATE LIMITED
Price: 185000.0 INR
Availability: InStock

Price 185000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ultra H - 300 3 Part Hematology Analyzer Specification

Suitable For
Human Blood Sample Analysis

Accuracy
High repeatability, clinical standard precision

Storage Capacity
Up to 100,000 patient results

Frequency
50/60 Hz

Dimension (L*W*H)
Approx. 400 x 350 x 450 mm

Humidity Range
30% to 85% RH, non-condensing

Application
Clinical Laboratory, Diagnostic Centers, Hospitals

Treatment Type
In Vitro Diagnostic Use

Properties
Automated Blood Cell Counter, 3-Part Differential, High Throughput

Product Type
3 Part Hematology Analyzer

Automation Grade
Fully Automated

Color Code
White with Black Front Panel & Red Accents

Shape
Rectangular

Height
Approx. 450 mm

Display Type
Touchscreen LCD

Function
Fully Automated Blood Analysis & Reporting

Weight
Approx. 18 kg

Material
High-quality Medical-grade Plastic and Electronic Components

Temperature Range
10C to 30C (Operating)

Use
Complete Blood Count (CBC) and Hematological Analysis

Power
100-240V AC

Power Source
Electric

Voltage
100-240V AC

Display
Large Color Touchscreen Display

Analysis Principle
Electrical impedance method (Coulter Principle)

Throughput
60 samples/hour

Sample Volume
Minimal (10-20 L blood/sample)

Data Storage
Internal memory & USB export

Printer
Built-in thermal printer support

Interfaces
USB, LAN, Serial Port

Channel
Single/dual channel operation

Alarm/Alert system
Integrated visual and audio alarms for abnormal results

User Interface
Multilingual, user-friendly software

RFID Functionality
Integrated RFID for sample management

Parameters Measured
CBC: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, and more

Maintenance
Low maintenance, automated cleaning procedures

About Ultra H - 300 3 Part Hematology Analyzer

3-PART DIFFERENTIAL HEMATOLOGY ANALYZER

Compact Intelligent Reliable CBC Testing

Smarter Hematology. Simplified Workflow.

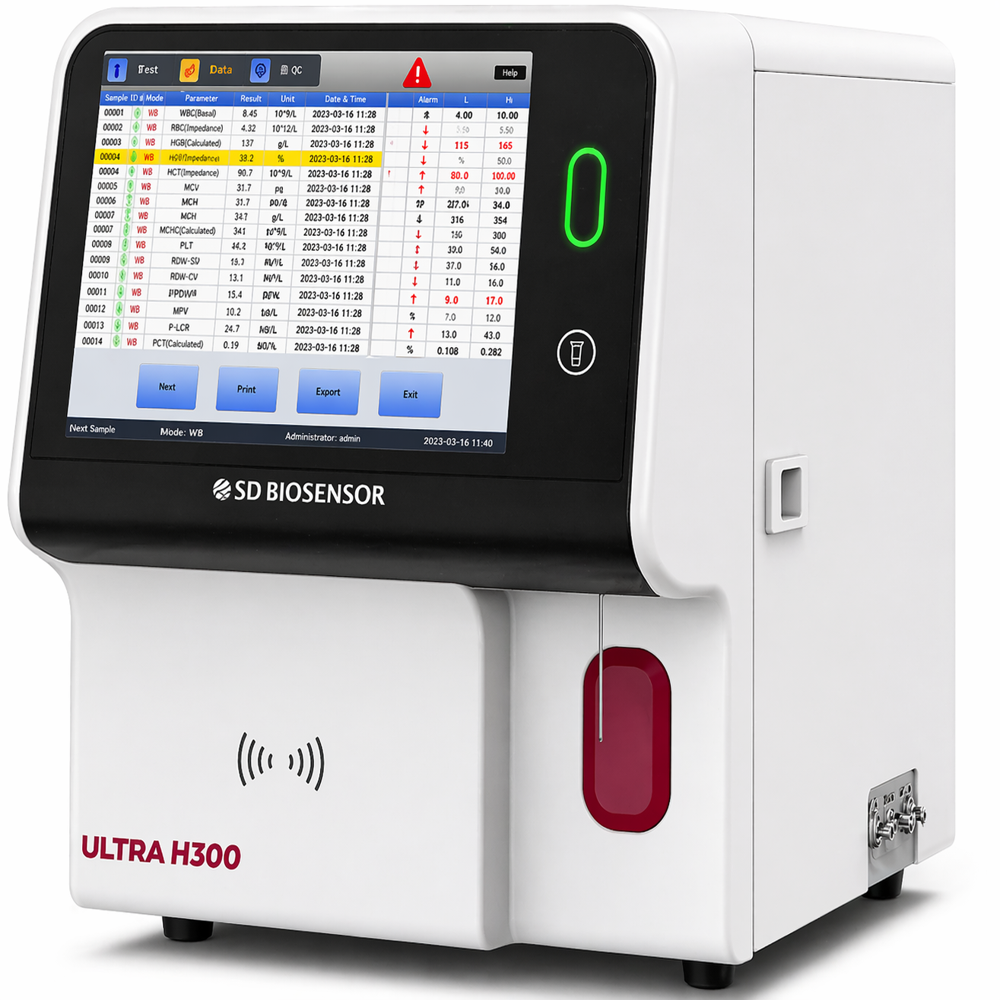

The ULTRA H300 is a compact, fully automated 3-Part Differential Hematology Analyzer designed for efficient and dependable Complete Blood Count (CBC) testing.

With an intuitive large color touchscreen, efficient reagent utilization and intelligent result flagging, the ULTRA H300 delivers a streamlined workflow for diagnostic laboratories, hospitals, clinics and other healthcare facilities.

Advanced Hematology Analysis

Ultra H - 300 utilizes the Coulter Principle to deliver high-precision blood analysis across comprehensive CBC parameters. Its minimal blood requirement (10-20 L/sample) ensures efficient, low-volume testing, ideal for fast-paced clinical environments.

User-Centric Design and Operation

With a large color touchscreen, multilingual interface, and intuitive software, operation of the Ultra H - 300 is straightforward. The integrated visual and audio alarm system alerts users to abnormal results in real time, ensuring prompt and accurate action.

Seamless Data Management and Connectivity

Storing up to 100,000 patient results internally, and supporting USB export, LAN, and serial connections, the analyzer guarantees robust data accessibility. An inbuilt thermal printer offers immediate report output, facilitating efficient diagnostics documentation.

FAQ's of Ultra H - 300 3 Part Hematology Analyzer:

Q: How does the Ultra H - 300 ensure accurate and reliable blood analysis?

A: The Ultra H - 300 employs the electrical impedance method, or Coulter Principle, to precisely measure blood cell parameters, guaranteeing high repeatability and clinical-grade accuracy. Its advanced detection systems and integrated alarms further enhance reliability by immediately flagging abnormal results.

Q: What is the process for running a sample and obtaining results on this analyzer?

A: Operators simply prepare a minimal blood sample (10-20 L) and load it into the analyzer. The device automatically processes the sample, analyzes all CBC parameters, and displays results on the large touchscreen. Reports can be printed instantly via the built-in printer or exported digitally.

Q: When is it necessary to perform maintenance, and how is it managed?

A: The Ultra H - 300 is designed for low maintenance and is equipped with automated cleaning procedures to keep the analyzer in optimal condition. Regular checks guided by the software interface ensure smooth operation with minimal user intervention.

Q: Where can the data from the analyzer be accessed or exported?

A: Patient results and data are stored in the analyzer's internal memory-capable of holding up to 100,000 entries-which can be easily accessed via the interface. For external use, information can be exported through USB, LAN, or serial port connectivity.

Q: What are the key benefits of using the Ultra H - 300 in a clinical laboratory?

A: Key benefits include high throughput (60 samples/hr), minimal sample volume requirements, integrated RFID for seamless sample management, intuitive multilingual user interface, and reliable result reporting-all contributing to enhanced laboratory efficiency and diagnostic accuracy.

Q: How is sample management streamlined with the Ultra H - 300?

A: This analyzer integrates RFID technology to manage and track samples automatically, reducing manual entry errors and facilitating precise sample identification throughout the testing process.
