Rayto Chemray 330 Fully Automatic Biochemistry Analyzer

690000.00 INR/Piece

Get a Price/Quote

Product Details:

Storage Instructions Standard Laboratory Environment
Accuracy CV 1% for repeatability
Function Quantitative analysis of clinical biochemical parameters
Features Throughput up to 300 Tests/Hour, ISE optional, Large Touch-screen Display
Usage Type Laboratory/Diagnostic Use
Instruments Type Clinical Chemistry Analyzer
Display Type Large LCD Touchscreen
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Rayto Chemray 330 Fully Automatic Biochemistry Analyzer Price And Quantity

Price 690000.00 INR/Piece
Minimum Order Quantity 1 Piece

Rayto Chemray 330 Fully Automatic Biochemistry Analyzer Product Specifications

Storage Instructions Standard Laboratory Environment
Use Clinical Chemistry and Biochemistry Testing
Accuracy CV 1% for repeatability
Function Quantitative analysis of clinical biochemical parameters
Power Source Electric
Features Throughput up to 300 Tests/Hour, ISE optional, Large Touch-screen Display
Usage Type Laboratory/Diagnostic Use
Weight 65 kg
Instruments Type Clinical Chemistry Analyzer
Portable No
Condition New
Material Metal and Plastic Housing
Dimension (L*W*H) 860 mm 620 mm 540 mm
Noise Level 60 dB
Voltage AC 100-240V, 50/60Hz
Display Type Large LCD Touchscreen
Equipment Type Fully Automatic Biochemistry Analyzer
Measurement Range 0-20.00 mmol/L (Depends on parameter)
Real-Time Operation Yes
Color White and Blue
Technology Discrete, Random Access, Fully Automated
Operating Type Automated
Frequency 50/60 Hz
Power Consumption 350 VA
Wall Mounted No

Rayto Chemray 330 Fully Automatic Biochemistry Analyzer Trade Information

FOB Port Jaipur
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
Supply Ability 100 Piece Per Day
Delivery Time 15 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Chemray330:-

-Fully automated, random access, STAT priority

- Constant throughput 200tests/h

-Automatic 8 steps washing system

-Onboard refrigerated storage for reagent

-Internal barcode reader for samples and reagents (optional)

-Reagent open system, close system on request

-Multi-language software available

Technical Details

Advanced Workflow and Capacity

The Chemray 330 is engineered to handle high testing volumes, supporting up to 300 assays per hour. Its 80 reusable cuvettes and 60-sample capacity, including STAT, enable efficient multitasking and fast turnaround. With 72 reagent positions and versatile volume settings, the unit streamlines workflow for clinical laboratories and diagnostic centers.

Enhanced Precision and Flexibility

Equipped with a six-zone incubation system ensuring constant 37C, and multiple calibration methods including linear and non-linear, the Chemray 330 offers both consistency and adaptability for a range of biochemical analyses. Its wide measurement range and CV 1% for repeatability ensure reliable quantitative results across numerous clinical parameters.

User-Centric Automated Operation

The Chemray 330 features an intuitive large LCD touchscreen display, discrete random access technology, and real-time operation. With ample internal memory for up to 100,000 results, USB, RS232, and LAN connectivity, and quiet operation (60 dB), the unit fits seamlessly into both busy and routine laboratory environments.

FAQs of Rayto Chemray 330 Fully Automatic Biochemistry Analyzer:

Q: How does the Rayto Chemray 330 automate the biochemistry testing process?

A: The Chemray 330 automates the entire biochemistry analysis cycle, from sample loading to result output. Utilizing discrete, random access technology, it automatically processes up to 300 tests per hour, manages sample/reagent dispensing, and executes precise incubation with minimal user intervention.

Q: What sample and reagent volumes can the Chemray 330 accommodate?

A: The analyzer handles sample volumes ranging from 2 to 60 L and reagent volumes from 20 to 350 L, offering flexibility for various test protocols. These parameters are easily configurable depending on your assay requirements.

Q: When is the STAT function used, and how does it benefit laboratory workflow?

A: The STAT capability allows urgent or high-priority samples to be processed immediately, providing rapid results without interrupting routine testing. This is especially beneficial for critical patient diagnostics requiring swift clinical decision-making.

Q: Where can the Rayto Chemray 330 be installed, and what are its space requirements?

A: Designed for laboratory and diagnostic use, the Chemray 330 is not wall-mounted or portable. It requires a stable laboratory bench space measuring at least 860 mm 620 mm 540 mm and access to an AC 100240V power supply.

Q: What calibration and data storage options are available?

A: The analyzer supports various calibration methods, including linear, non-linear, and point-to-point approaches, ensuring accuracy for different assays. It also features an internal memory capable of storing up to 100,000 test results for data tracking and retrieval.

Q: How is water usage optimized in the Chemray 330?

A: The system is designed to consume no more than 5 liters of water per hour during operation, helping laboratories manage resources efficiently while maintaining reliable day-to-day performance.

Q: What are the main benefits of using the Chemray 330 in a clinical laboratory?

A: Primary benefits include high throughput, walkaway automation, flexible sample/reagent handling, reliable and repeatable results, and user-friendly electronic data management, all contributing to streamlined laboratory operations and enhanced patient care.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Biochemistry Analyzer' category

Elitech Biochemistry Analyzer Price : 800000 INR/Piece Minimum Order Quantity : 1 Weight : Approx. 43 kg Portable : No Use : Clinical Laboratory Biochemistry Analysis Power Source : Electric Operating Type : Automatic Power Consumption : Approx. 300 W Dimension (L*W*H) : 580 x 630 x 480 mm Condition : New Equipment Type : Biochemistry Analyzer Voltage : 220 V / 50 Hz

Send Inquiry

Erba Chem 7 - Semi Automatic Biochemistry Analyzer Price : 160000 INR/Piece Minimum Order Quantity : 1 Weight : Approx. 7 Kgs Kilograms (kg) Portable : yes Use : lab hospital Power Source : Electric Operating Type : SemiAutomatic Power Consumption : 70w Watt (W) Dimension (L*W*H) : 205 (H) x 450 (W) x 300(D) Millimeter (mm) Condition : New Equipment Type : biochemistry analyzer Voltage : 230v Volt (v)

Send Inquiry

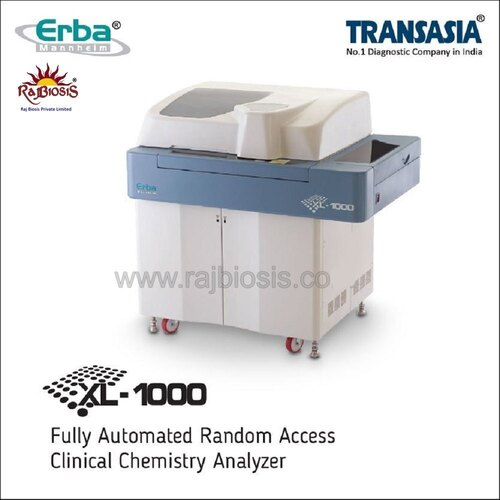

TransAsia XL 1000 Fully Automated Biochemistry Analyzer Price : 1450000 INR/Piece Minimum Order Quantity : 1
